Iris Species Predictor Project

Project Overview

This project demonstrates the deployment of a simple machine learning model trained on the Iris dataset using Flask, Docker, and Kubernetes on Azure. Users can input measurements to predict the iris species (Setosa, Versicolor, or Virginica).

Live Application Link

Iris Species Detector Application
Note: application might not remain up depending on cost to keep the service running on Azure.

Application Screenshot

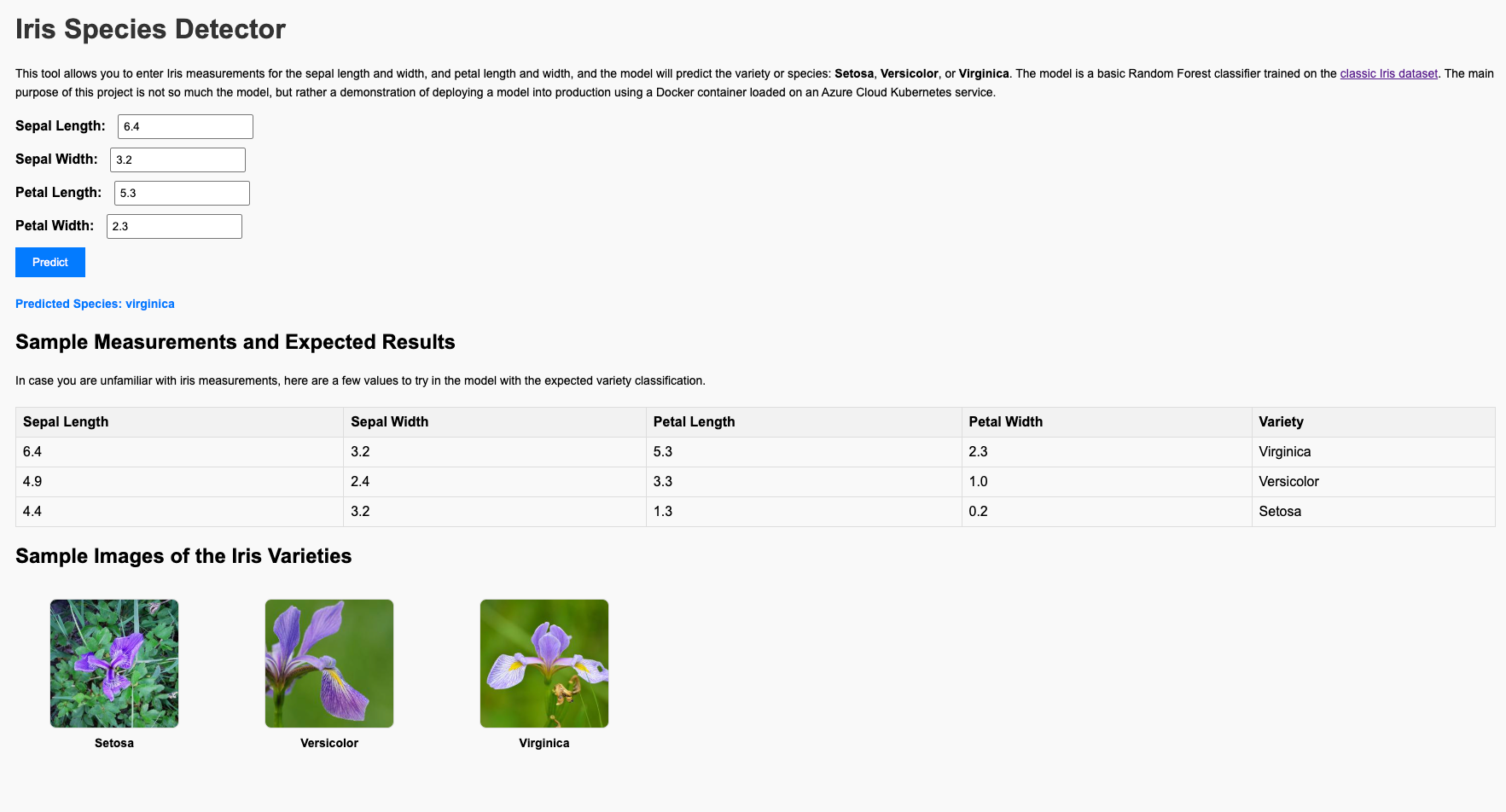

Below is a screenshot of the Iris Species Predictor application in action:

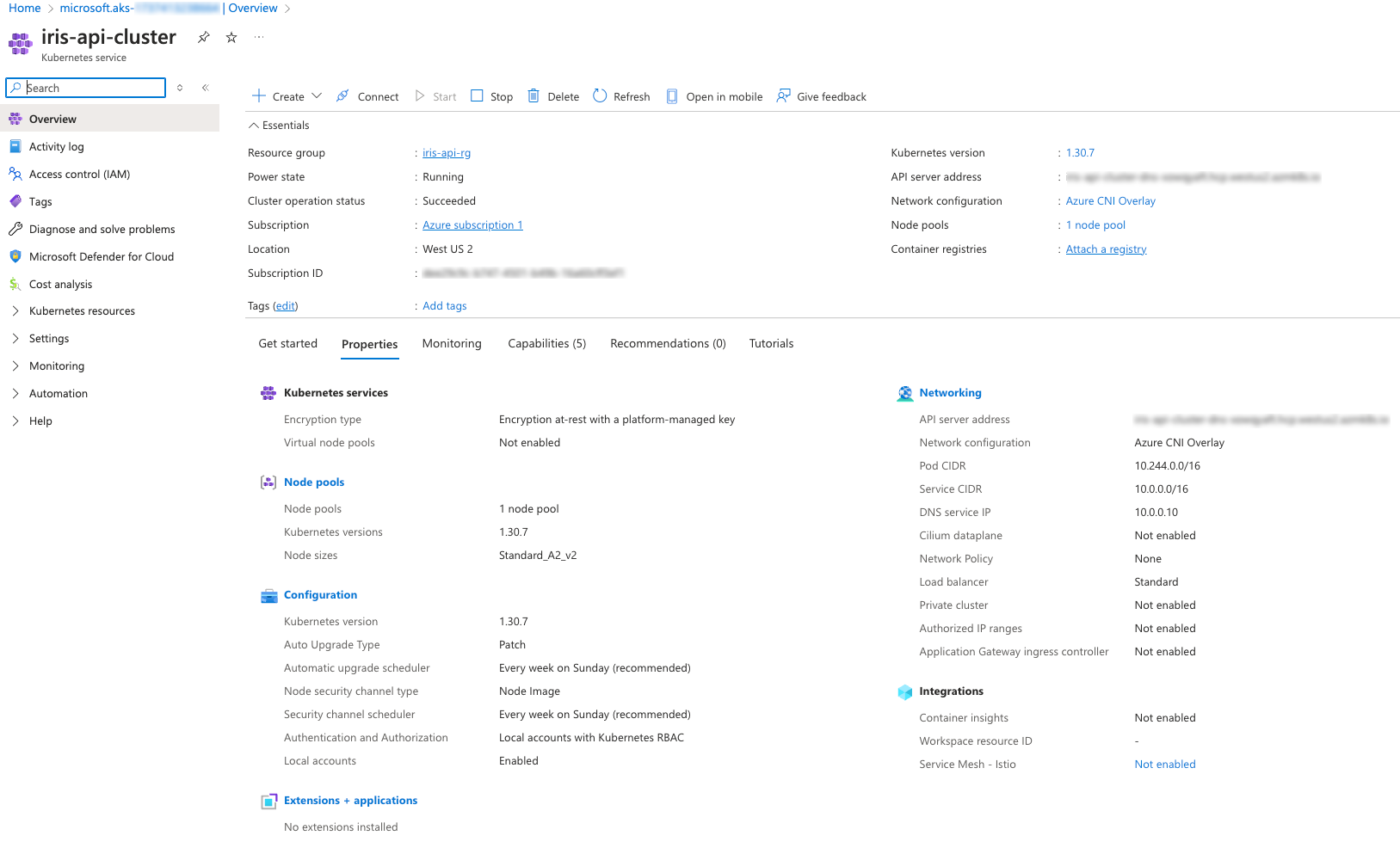

Below is a screenshot of the Kubernetes service configured in Azure:

Project Files

• train_model.py: Code to create the basic trained Machine Learning Model
• app.py: Main Flask application file.
• Dockerfile: Configuration for creating the Docker image.
• requirements.txt: list of external dependencies required to run the project.
• deployment.yaml: Kubernetes deployment configuration.

Deployment Procedures

These are the steps to deploy the application:

1. Build and push the Docker image:


   docker build -t beecher92099/iris-api:latest .
   docker push beecher92099/iris-api:latest


2. Deploy to Kubernetes:


   kubectl apply -f deployment.yaml
   kubectl rollout status deployment/iris-api


3. Identify the external IP address used to access the application (http://<ip address>):


   kubectl get service iris-api-service


Code Snippets

train_model.py

import numpy as np
import pandas as pd
from sklearn.datasets import load_iris
from sklearn.ensemble import RandomForestClassifier
from sklearn.model_selection import train_test_split
import joblib

# Load the Iris dataset
data = load_iris()
X = data.data
y = data.target

# Split into training and testing sets
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)

# Train the Random Forest model
model = RandomForestClassifier(n_estimators=100, random_state=42)
model.fit(X_train, y_train)

# Save the model
joblib.dump(model, 'iris_model.pkl')

print("Model trained and saved as 'iris_model.pkl'")


app.py

from flask import Flask, request, jsonify
import joblib

app = Flask(__name__)

# Load the model
model = joblib.load('iris_model.pkl')

@app.route('/predict', methods=['POST'])
def predict():
    data = request.json
    features = [[data['sepal_length'], data['sepal_width'], data['petal_length'], data['petal_width']]]
    prediction = model.predict(features)
    species = ['Setosa', 'Versicolor', 'Virginica'][prediction[0]]
    return jsonify({'species': species})

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000, debug=True)


Dockerfile

# Use an official Python runtime as the base image
FROM python:3.8-slim

# Set the working directory in the container
WORKDIR /app

# Copy the requirements file and application code
COPY requirements.txt .
COPY app.py .
COPY iris_model.pkl .

# Install dependencies
RUN pip install --no-cache-dir -r requirements.txt

# Expose the port Flask runs on
EXPOSE 5000

# Command to run the application
CMD ["python", "app.py"]


requirements.txt

Flask
numpy
scikit-learn==1.3.0
joblib


deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: iris-api
spec:
  replicas: 2
  selector:
    matchLabels:
      app: iris-api
  template:
    metadata:
      labels:
        app: iris-api
    spec:
      containers:
      - name: iris-api
        image: beecher92099/iris-api:latest
        imagePullPolicy: Always
        ports:
        - containerPort: 5000
---
apiVersion: v1
kind: Service
metadata:
  name: iris-api-service
spec:
  type: LoadBalancer
  selector:
    app: iris-api
  ports:
  - protocol: TCP
    port: 80
    targetPort: 5000
