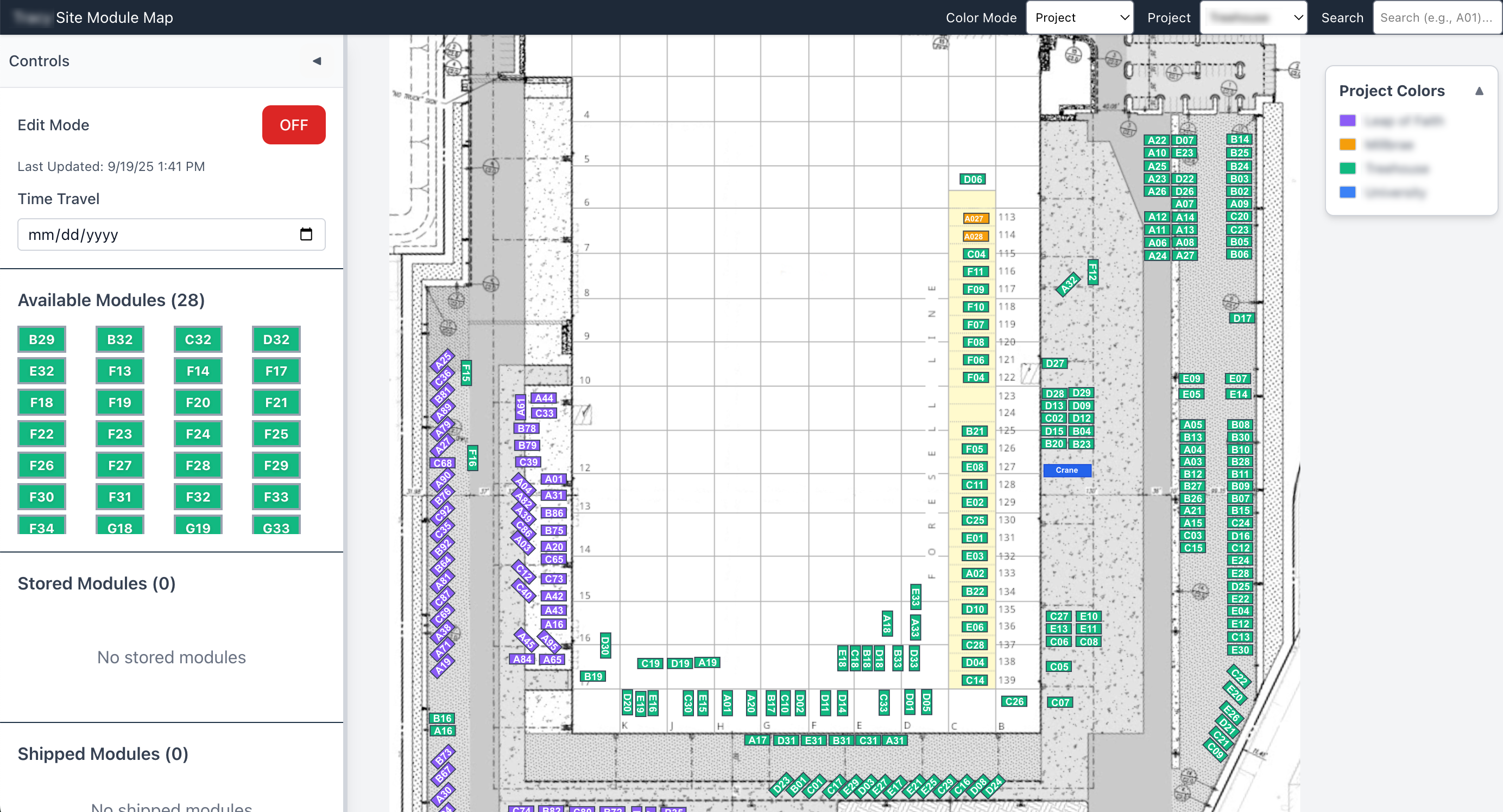

Full Stack Web Application for Factory Module Map

A full-stack web application to allow displaying the location of modules on the factory floor and surrounding site property.

• Read the inventory of modules for a given project from the Azure SQL database repository.
• Support 4 location areas for modules: 1) Available, 2) Site Image Area, 3) Stored Offsite, and 4) Delivered.
• Support the ability to drag modules between the 4 locations. On the Site Image Area support the ability to drag modules to specific locations and rotate modules in 45 degree increments.
• Support selecting multiple modules at once and dragging as a group. Support alignment operations on a selected group: left or top alignment, vertical or horizontal equal distribution.
• Support the ability to search for a specific module and highlight where the module is located.
• Support password protected edit mode to enable module location editing.
• Ability to color code modules based on 1) Project, 2) Percent Complete, 3) Number of Open NCRs (Defects).
• Ability to view module locations in the past (time travel mode).
• Ability to undo/redo edits.
• Support desktop browser with mouse operations along with tablet/mobile devices with touchscreen operations.
• Coding was done using Claude Code.
